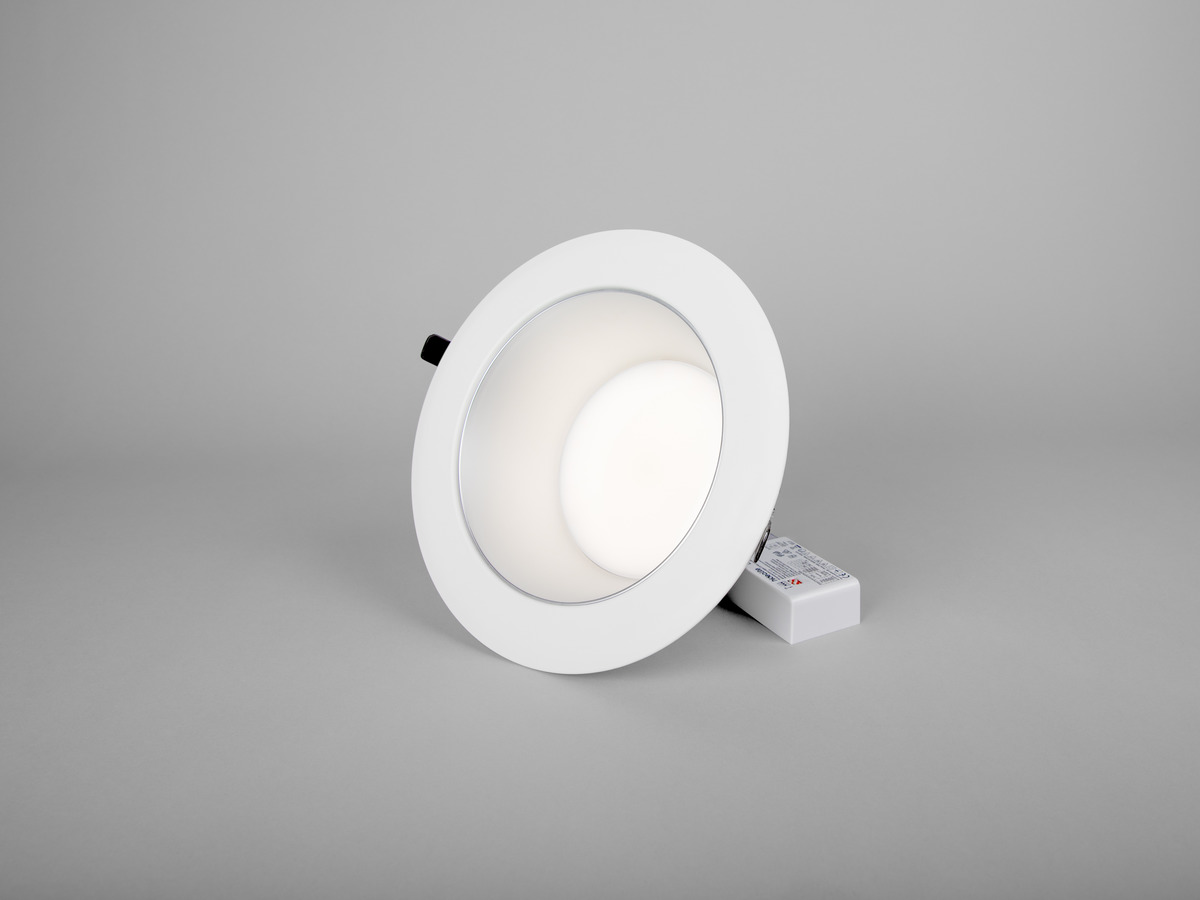

Echo L Echo L 265 White DALI

Adjustable lumen output via DIP-Switch Power, see manual for levels
Selectable colour temperature via DIP-Switch ColourTemp

Flexible luminaire with reflector technology and a high-positioned light source for very good anti-glare properties. All-round luminaire for public environments where more light is needed, e.g. rooms with high ceilings. For new installations or replacement of old compact fluorescent lamp fixtures for a much more energy-efficient installation. Adjustable lumen output and selectable colour temperature via DIP switch, 3000K, 4000K and 5700K. Complete with driver for phase dimming or DALI 2, with push-in terminals and screwless strain relief. Cover ring available as an accessory. Can be supplied with Q-Box Mini or Linect.

GTIN	Item Name	Type of Dimming
7392971148281	Echo L 265 White DALI	DIP-Switch Power, Push 230V, 1-10V, DALI 2
7392971141329	Echo L 230 White	DIP-Switch Power, Trailing Edge, Leading Edge
7392971141336	Echo L 230 White DALI	DIP-Switch Power, Push 230V, 1-10V, DALI 2
7392971148274	Echo L 265 White	DIP-Switch Power, Trailing Edge, Leading Edge
7392971148298	Echo L 320 White	DIP-Switch Power, Trailing Edge, Leading Edge
7392971148304	Echo L 320 White DALI	DIP-Switch Power, Push 230V, 1-10V, DALI 2

Description: GTIN 7392971148281

Item Name Echo L 265 White DALI

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 3160

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional, Replaceable Control gear by professional

LED Colour White

Colour Temperature (K) 3000, 4000, 5700

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

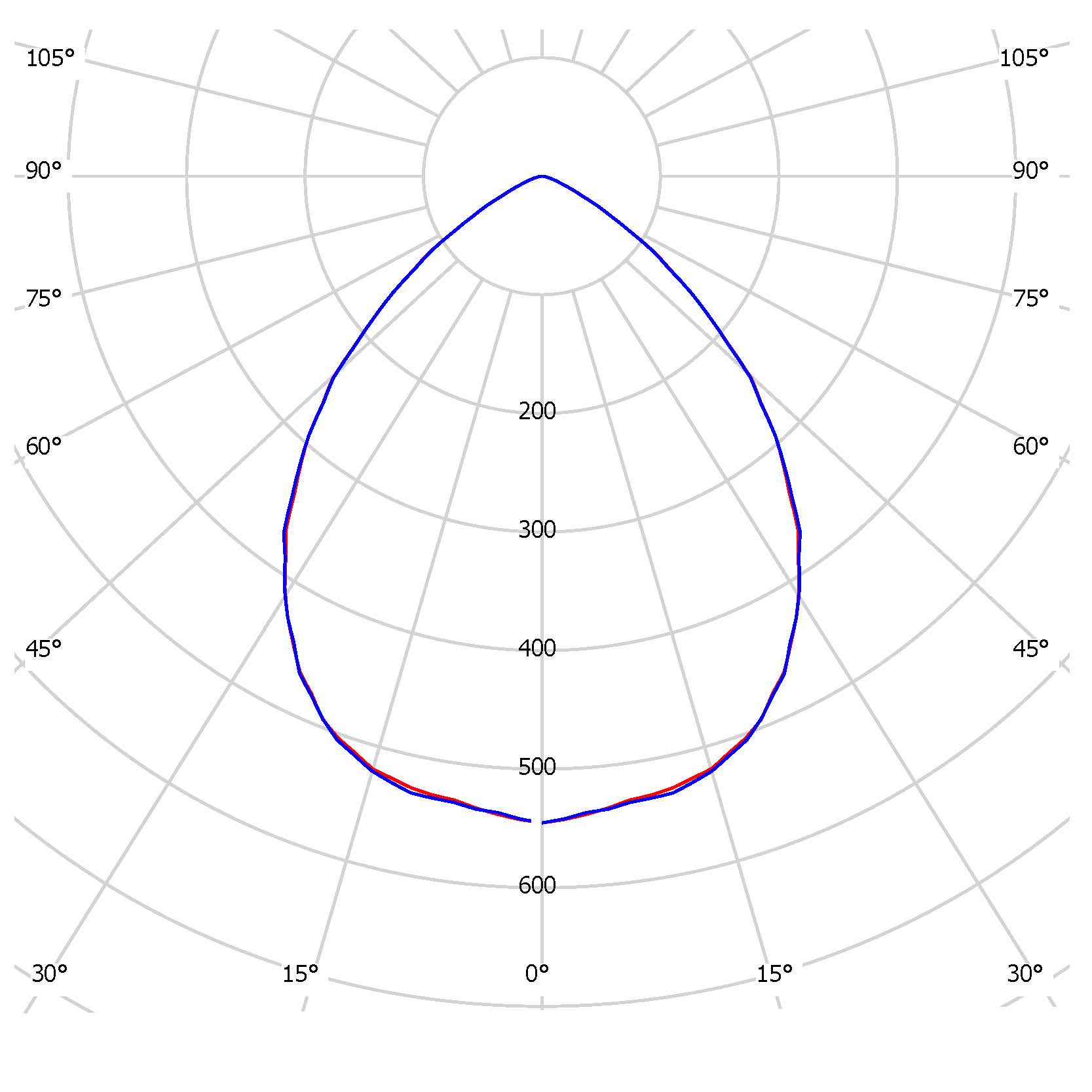

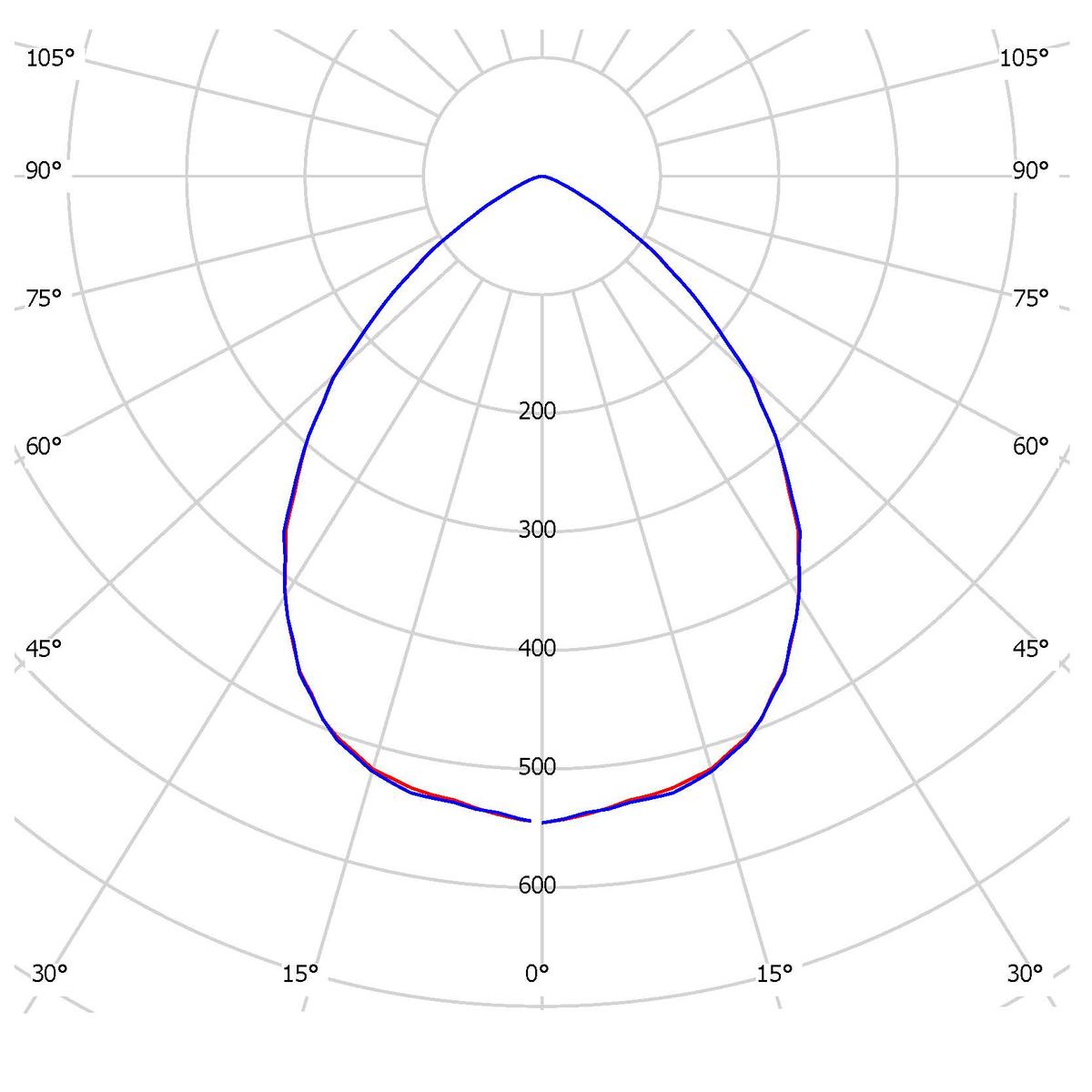

Luminous Intensity (cd) 1720

Beam Angle (°) 90

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 192

Life Time L80 50 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L81

Lumen maintenance 75 000h L73

LLMF @ 50 000h 0,81

Life Time Driver 50 000h/10%
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 26

Power Luminaire (W) 30

System Power (W) 30

Efficiency Luminaire (lm/W) 105

Efficiency System (lm/W) 105

Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection: Dimmable Yes

Type of Dimming DIP-Switch Power, Push 230V, 1-10V, DALI 2

Driver Included Yes

Driver Model Constant Current

Driver Type Stand Alone

Driver Manufacturer Hide-a-lite

Connection (type) Quick Terminal

Connection (mm2) 5x0,5-1,5

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,9

Efficiency (%) 83

Power loss (W) 5

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,5

Standby Power 0,5

Constant Current (mA) 650, 700, 750, 800

Operating Temperature -20…+40

Max. Tc (°C) 85

Dimming secondary side AM

Suitable for random switching Yes

Memory Function Power Failure Yes

Inrush current (max/time) 5,76A 120µs

Mains surge protection DM (kV) 1

Mains surge protection CM (kV) 2

Fuse B10 (pcs) 17

Fuse B16 (pcs) 27

Fuse C10 (pcs) 29

Fuse C16 (pcs) 46
Color and material: Material Aluminium

Color White

Environmental Assessment Byggvarubedömningen

Available in special color Yes
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 44

Protection Class II

Installation Built-in

Mounting Installation Mounting Spring

Ceiling Thickness Interval (mm) 5-40

Fire Safety Marks Not in insulation without protection cover

Approval Marks CE, a Hide-a-lite Choice

Filament Test IEC 695-2-1(°C) 650

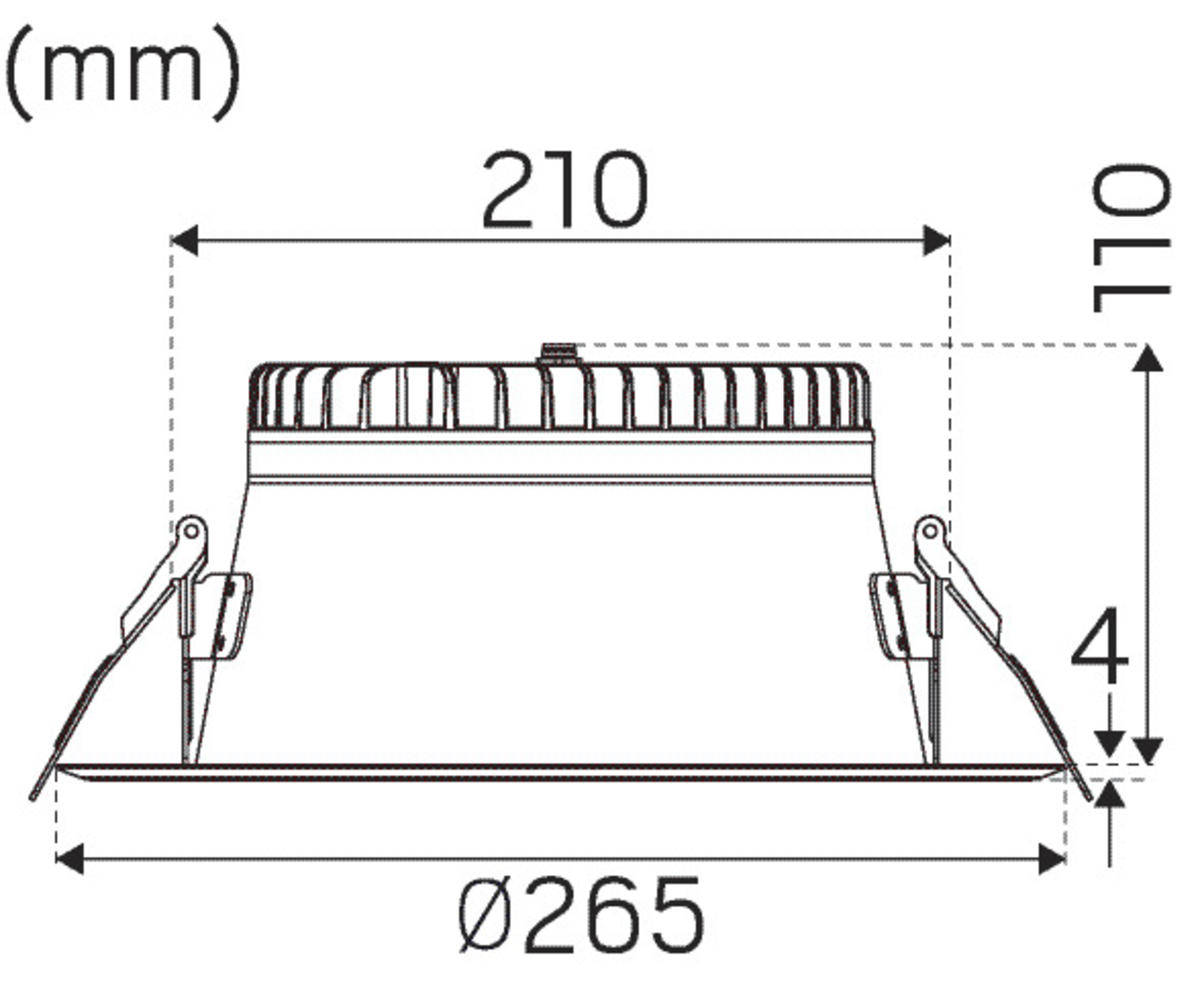

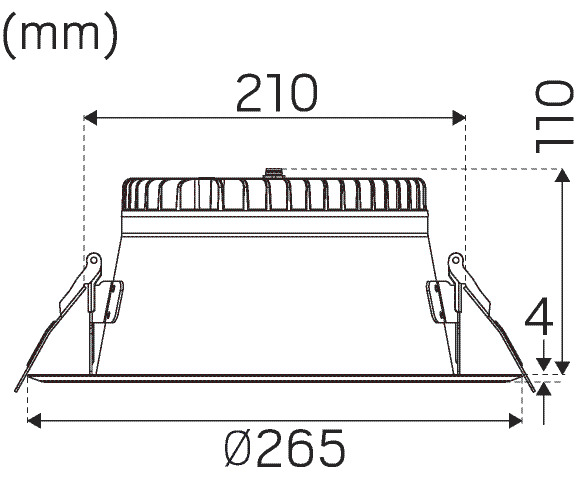

Height (mm) 109

Diameter (mm) 265

Weight (kg) 1,35

Height Recessed Part (mm) 110

Height Exterior Part (mm) 4

Built-in Ø (mm) 210-250

Spare parts

If you need spare parts, contact our customer support

LED-Module Echo L X239

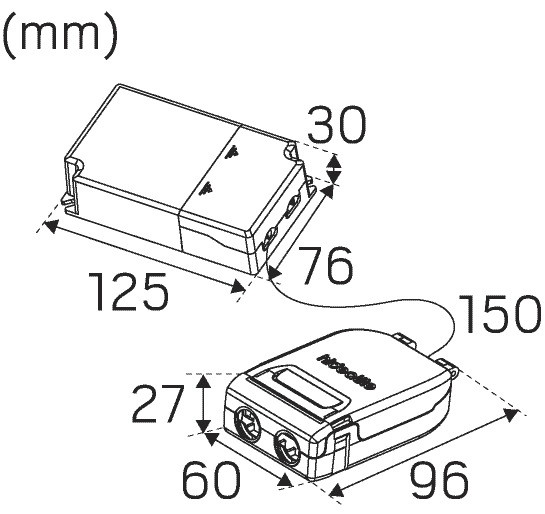

Driver Echo L DALI X248
