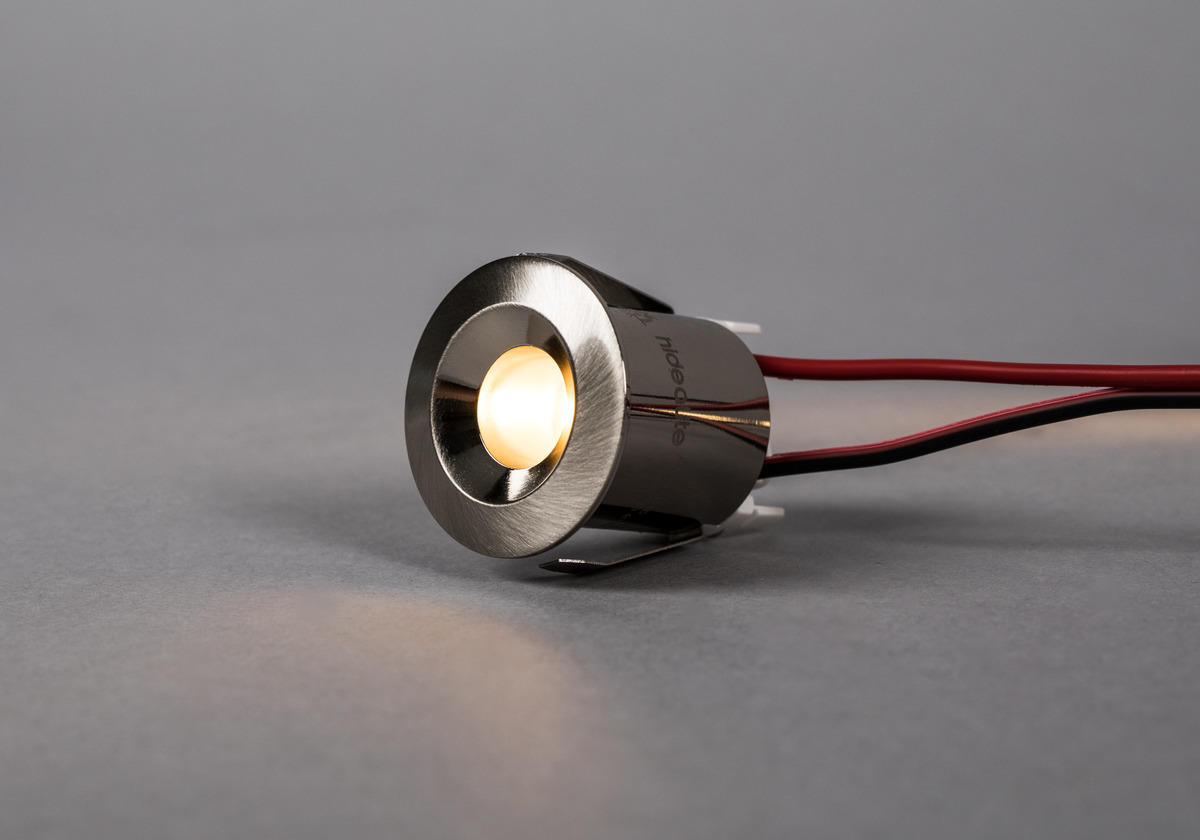

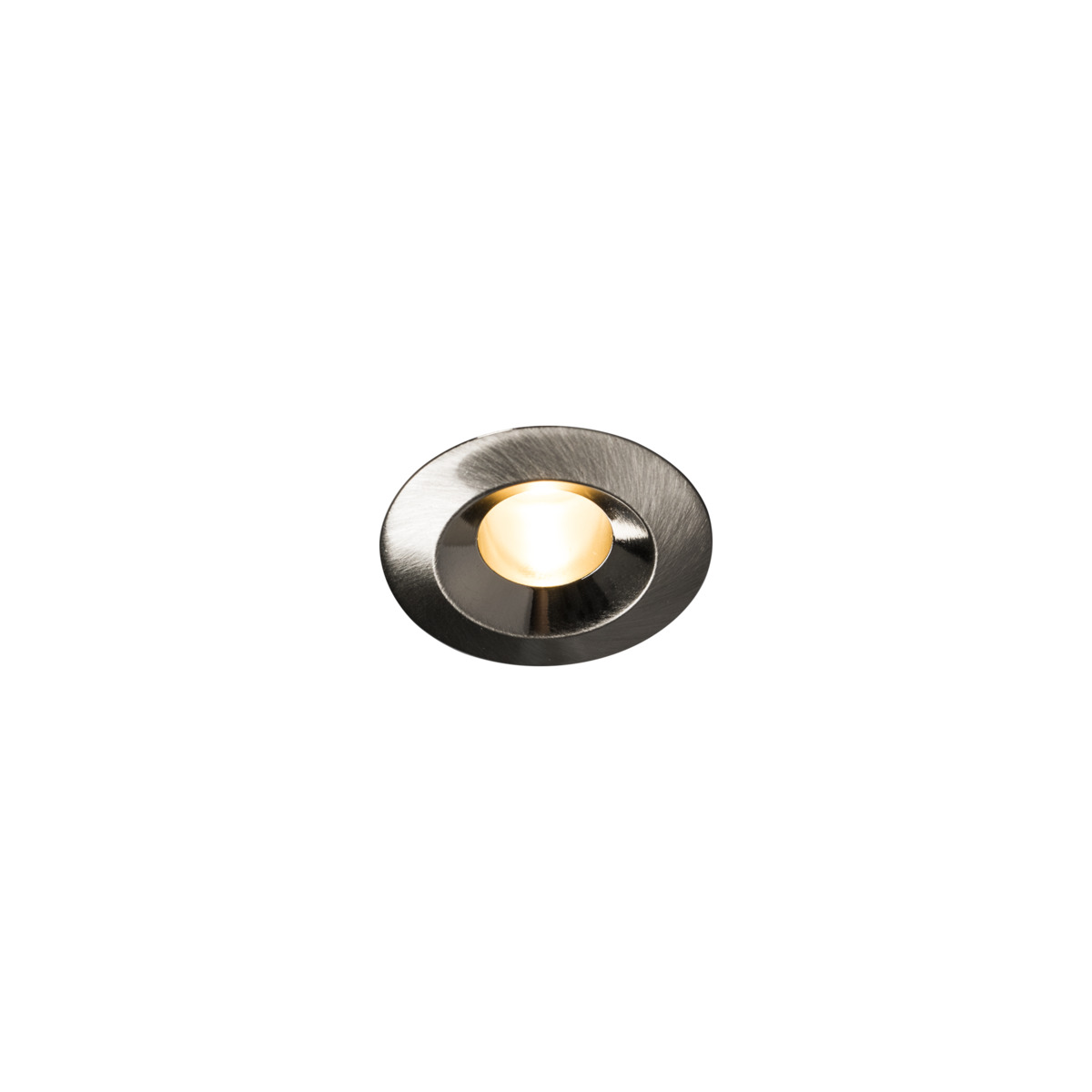

Core Smart 15°

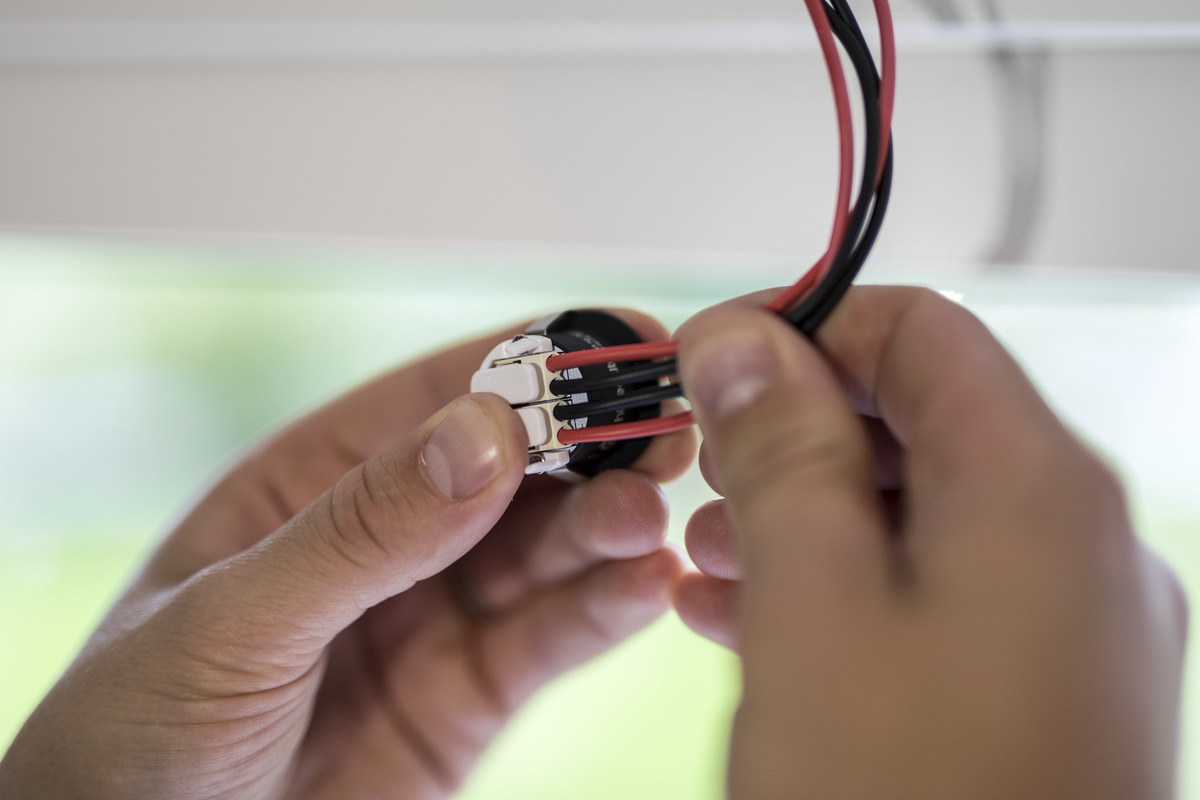

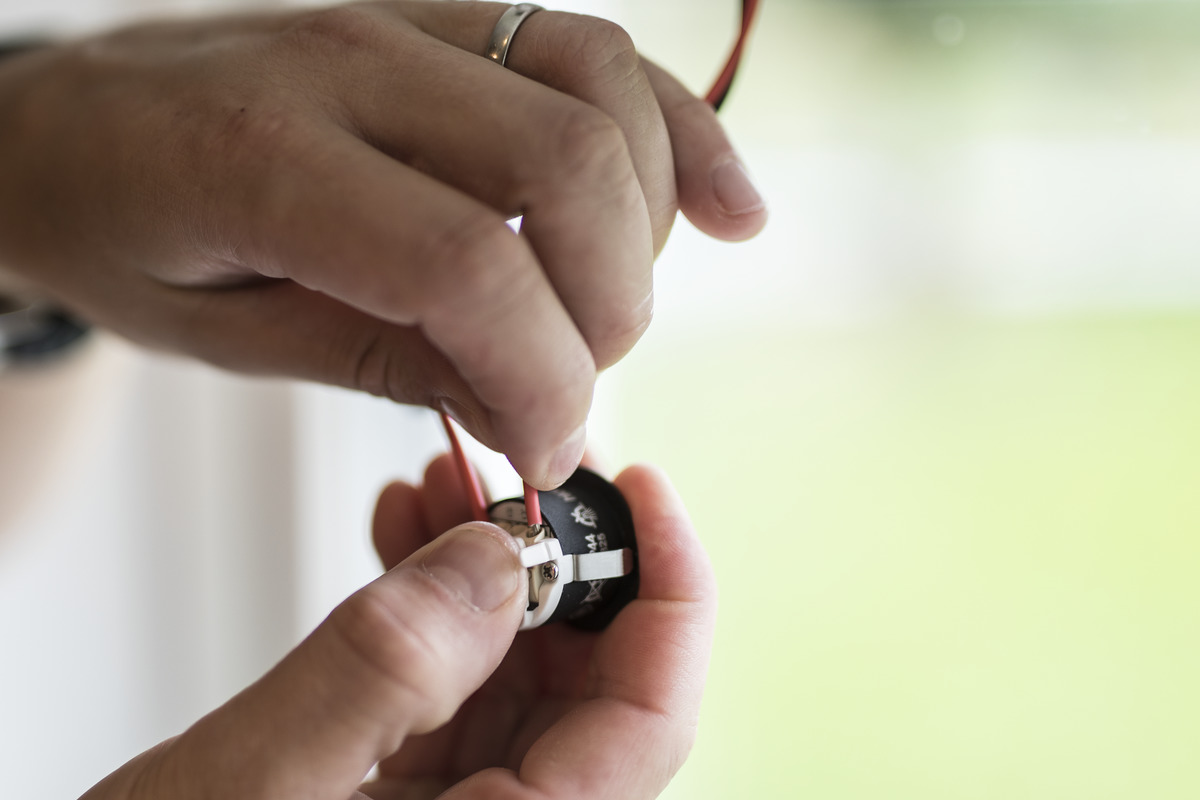

Integrated push-in terminal for easy and smart series connection

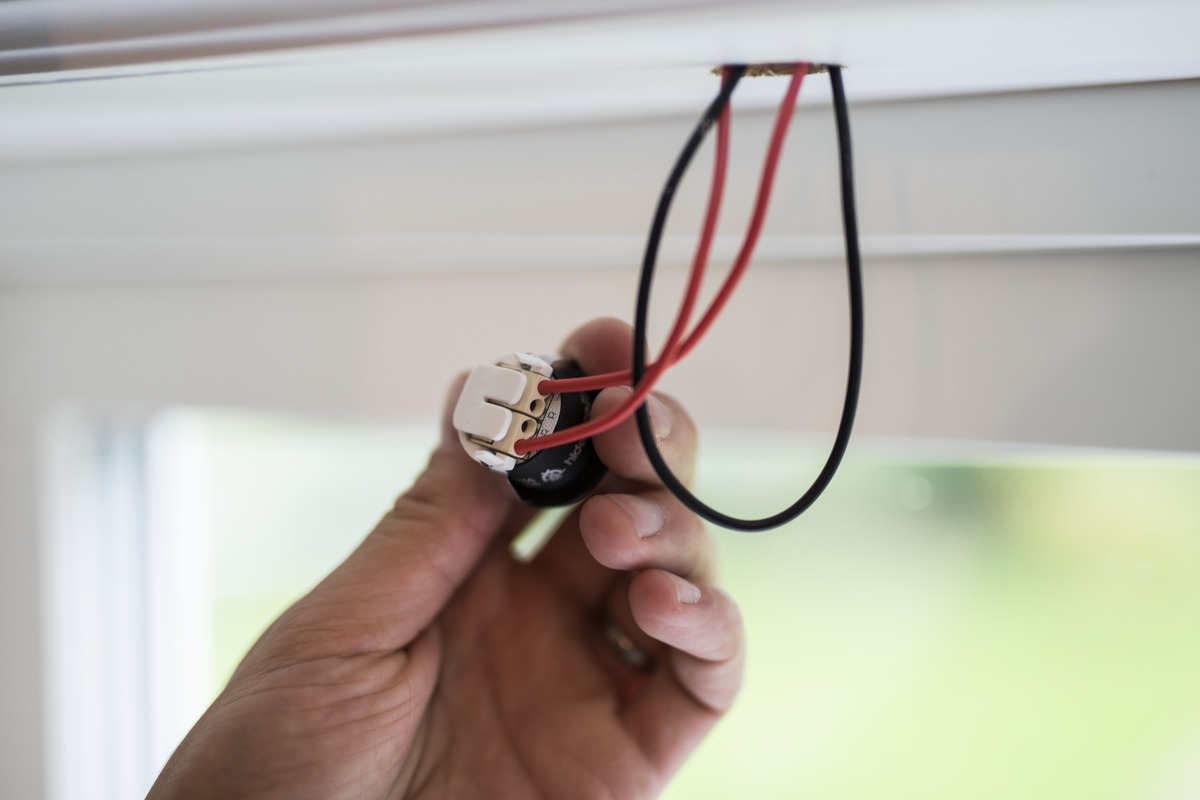

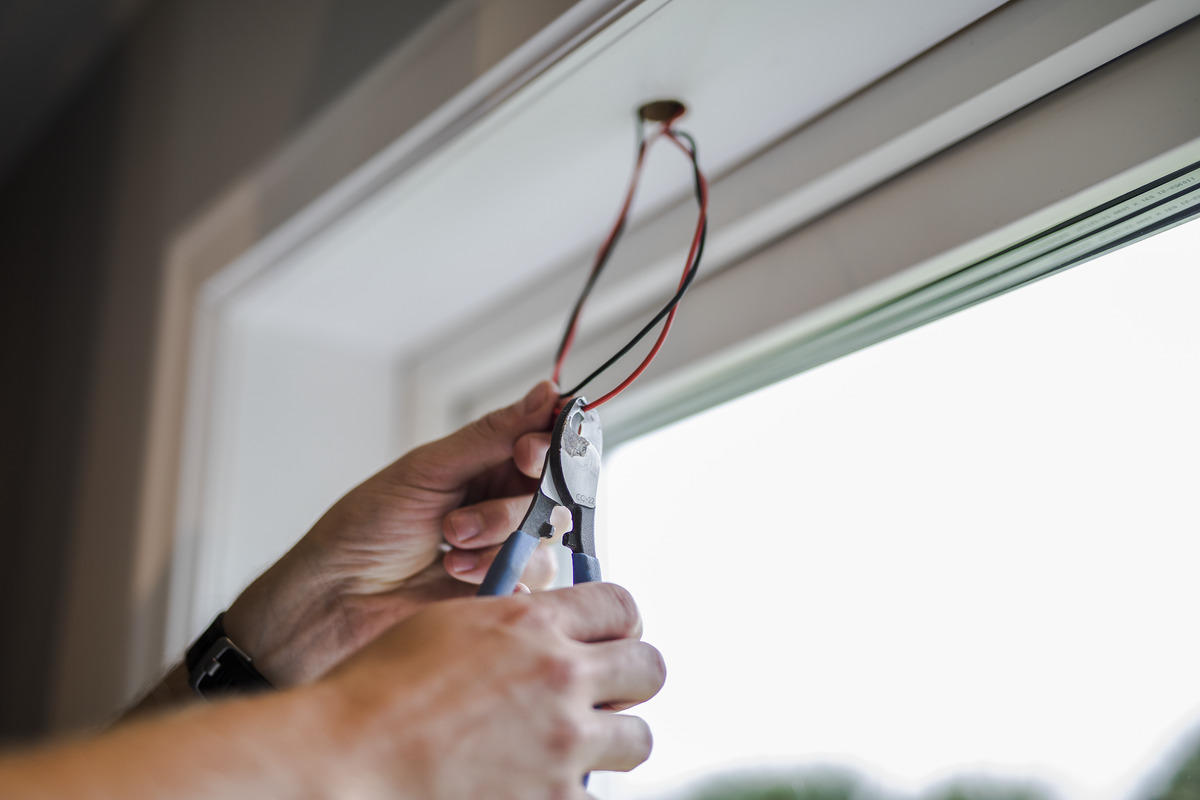

Use pre-wired cabling, avoid external joints and couple directly to the luminaire

Small, exclusive accent luminaire of the highest quality for indoor use with integrated push-in terminal for simplified and smart series connection, eliminates the hassle of external joints and minimises sources of faults and simplifies troubleshooting. Recessed light point makes the luminaire glare free. A good alternative when a 15° beam angle is wanted. Attractive as decorative lighting recessed into window nooks and furniture.

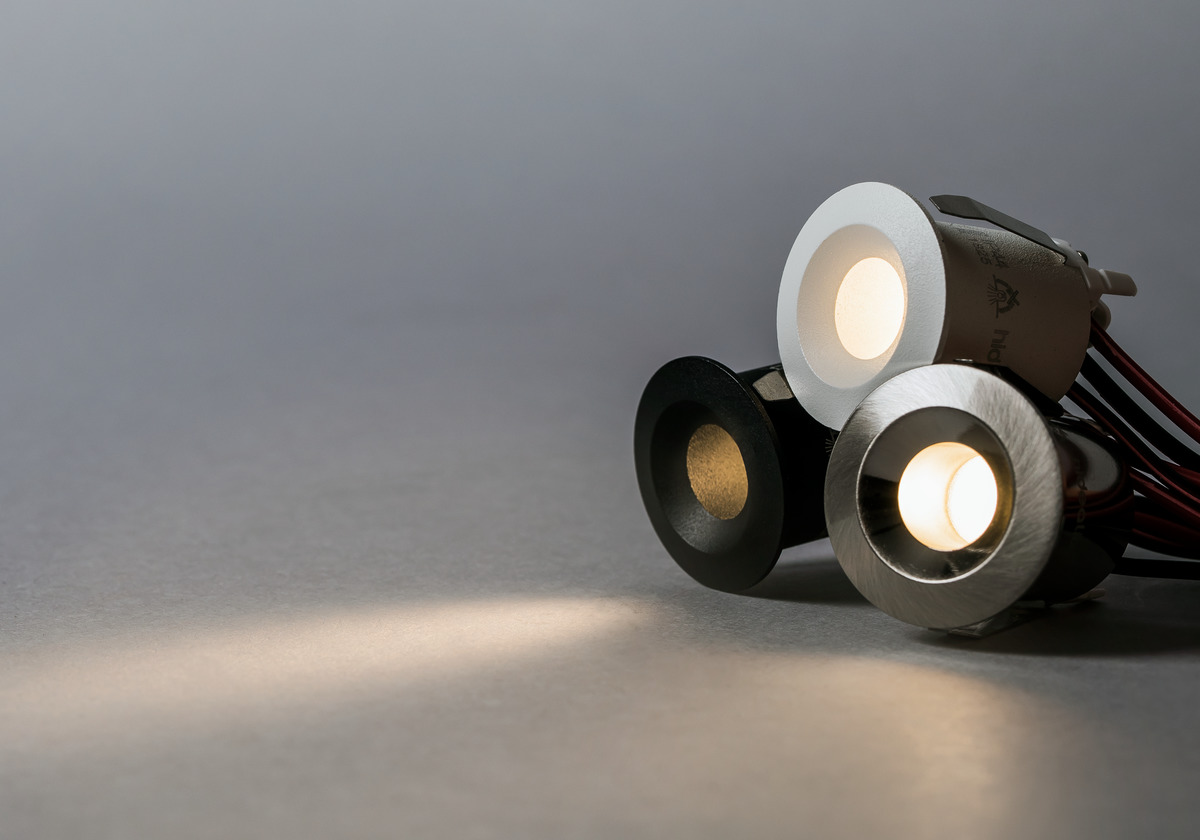

GTIN	Item Name	Color	Colour Temperature (K)	Luminaire Lumen (lm)
7392971134093	Core Smart 15° Brushed steel 2700K	Brushed Steel	2700	30
7392971134079	Core Smart 15° White 2700K	White	2700	30
7392971134086	Core Smart 15° White 3000K	White	3000	30
7392971134109	Core Smart 15° Brushed steel 3000K	Brushed Steel	3000	30
7392971134116	Core Smart 15° Black 2700K	Black	2700	25
7392971134123	Core Smart 15° Black 3000K	Black	3000	25

Description: GTIN 7392971134093

Item Name Core Smart 15° Brushed steel 2700K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 30

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 2700

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 160

Beam Angle (°) 15

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L70 90 000h Ta 25°C

Nominel Life Time (h) 90000
Technical data: Adjustable No

Voltage Forward (Vf) 3

Power Luminaire (W) 1,2

System Power (W) 1,3

Efficiency Luminaire (lm/W) 25

Efficiency System (lm/W) 23

Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Current

Connection (type) Quick Terminal

Connection (mm2) 2x0,2-0,75

Through Wiring Yes

Constant Current (mA) 350

Operating Temperature -20…+45

Max. Tc (°C) 80
Color and material: Material Aluminium

Color Brushed Steel

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1)

IP Degree of Protection 44

Protection Class III

Installation Built-in

Mounting Installation Tension Spring

Ceiling Thickness Interval (mm) 3

Fire Safety Marks Not in insulation without protection cover

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

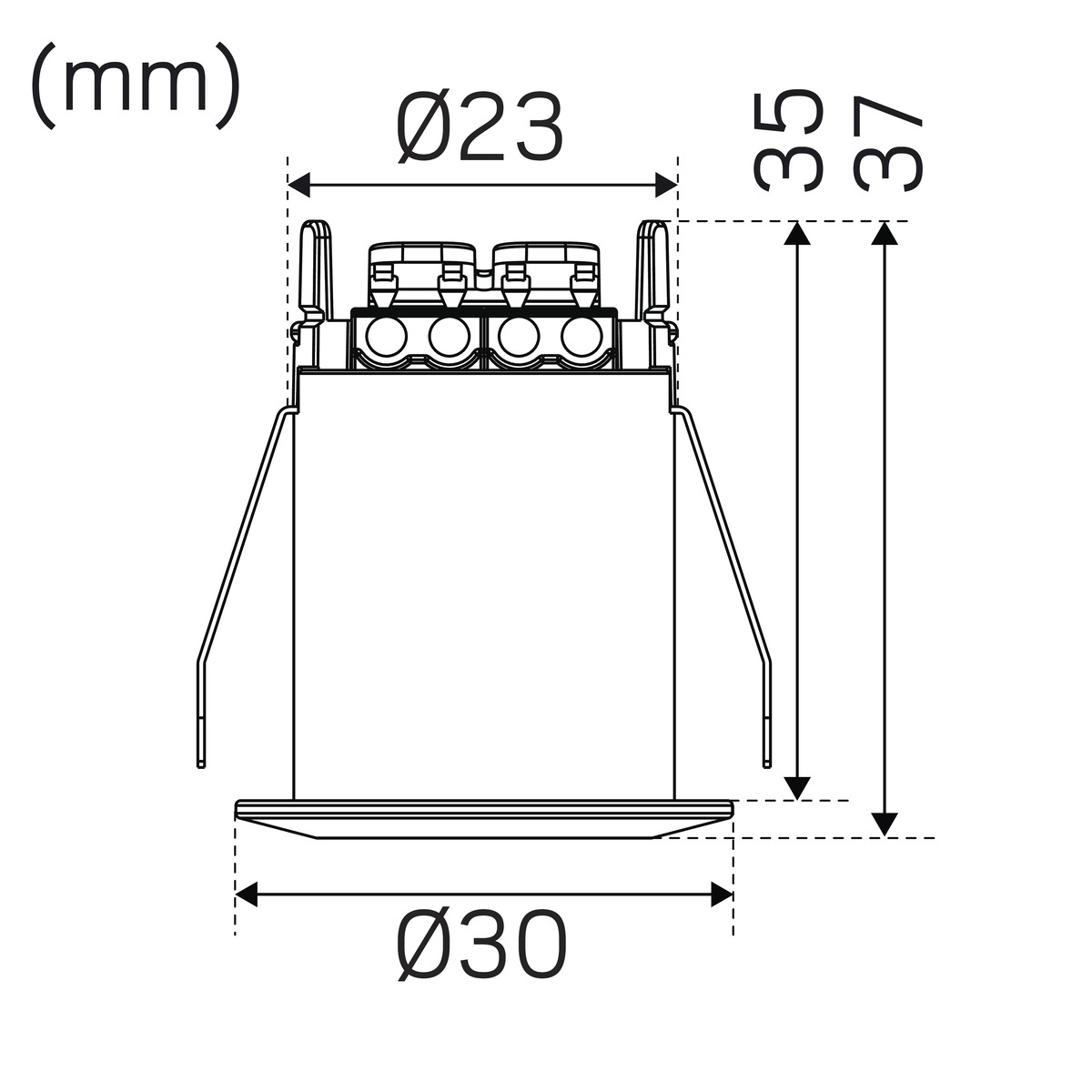

Height (mm) 37

Diameter (mm) 30

Weight (kg) 0,0245

Min. Built-in (mm) Ø25x31

Height Recessed Part (mm) 35

Height Exterior Part (mm) 3

Built-in Ø (mm) 25
