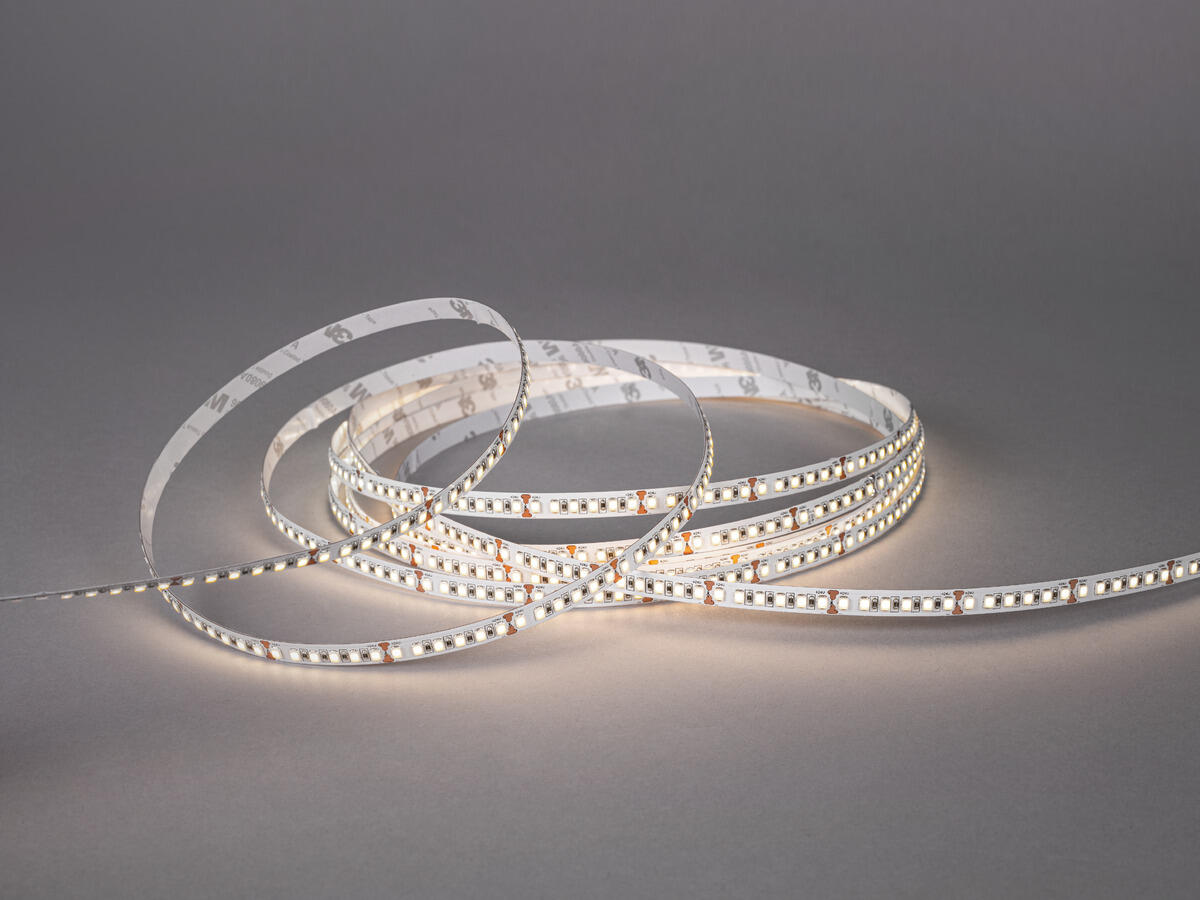

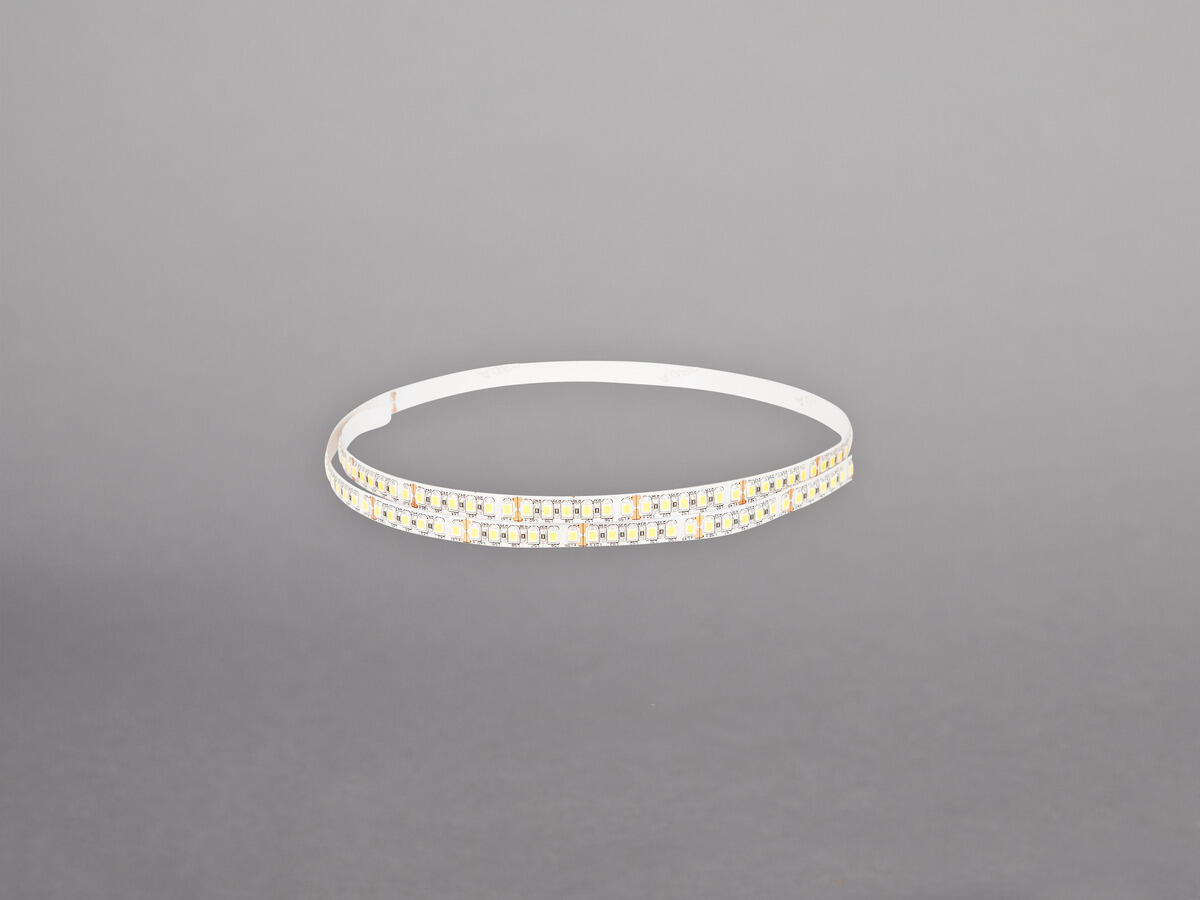

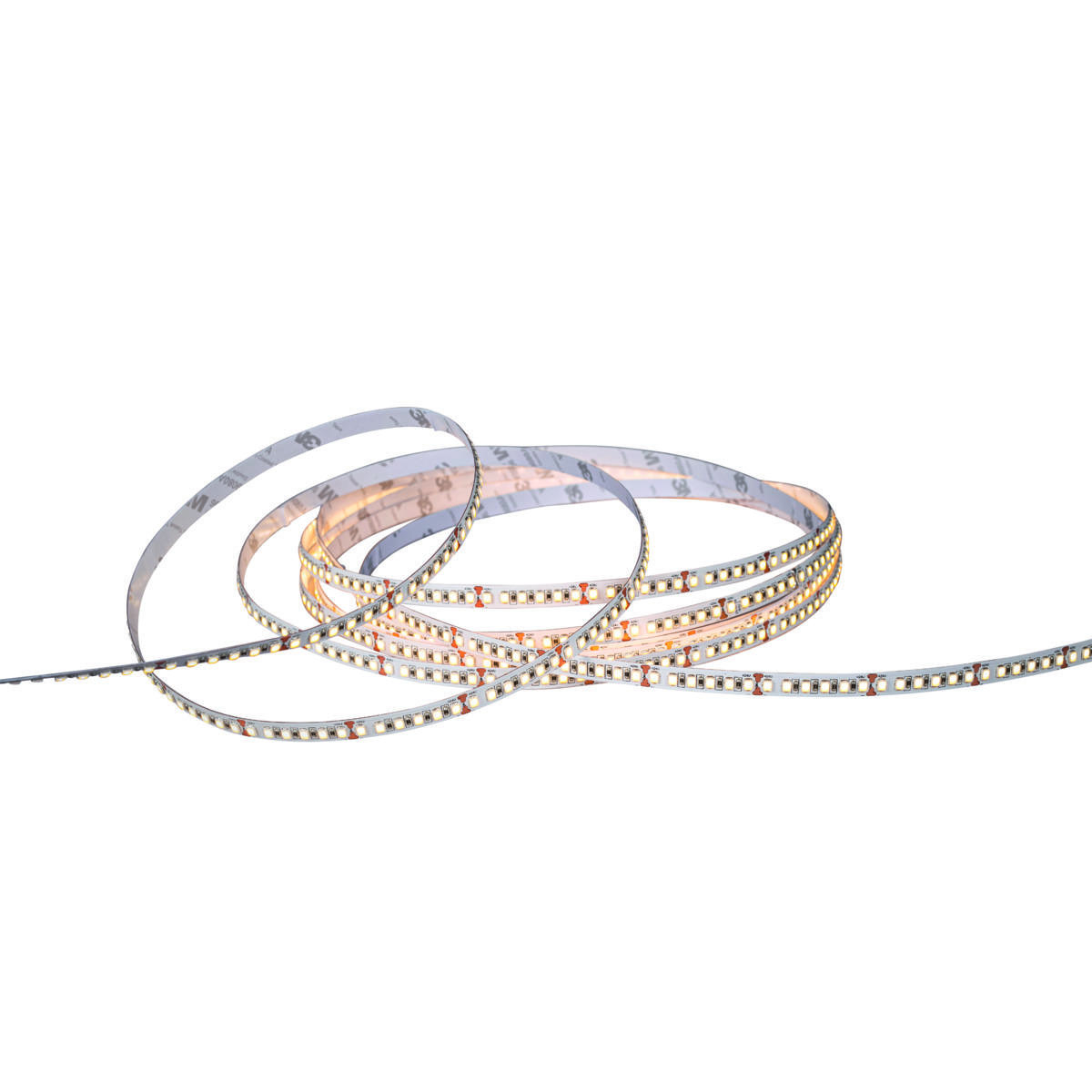

LEDstrip RX HD IP20

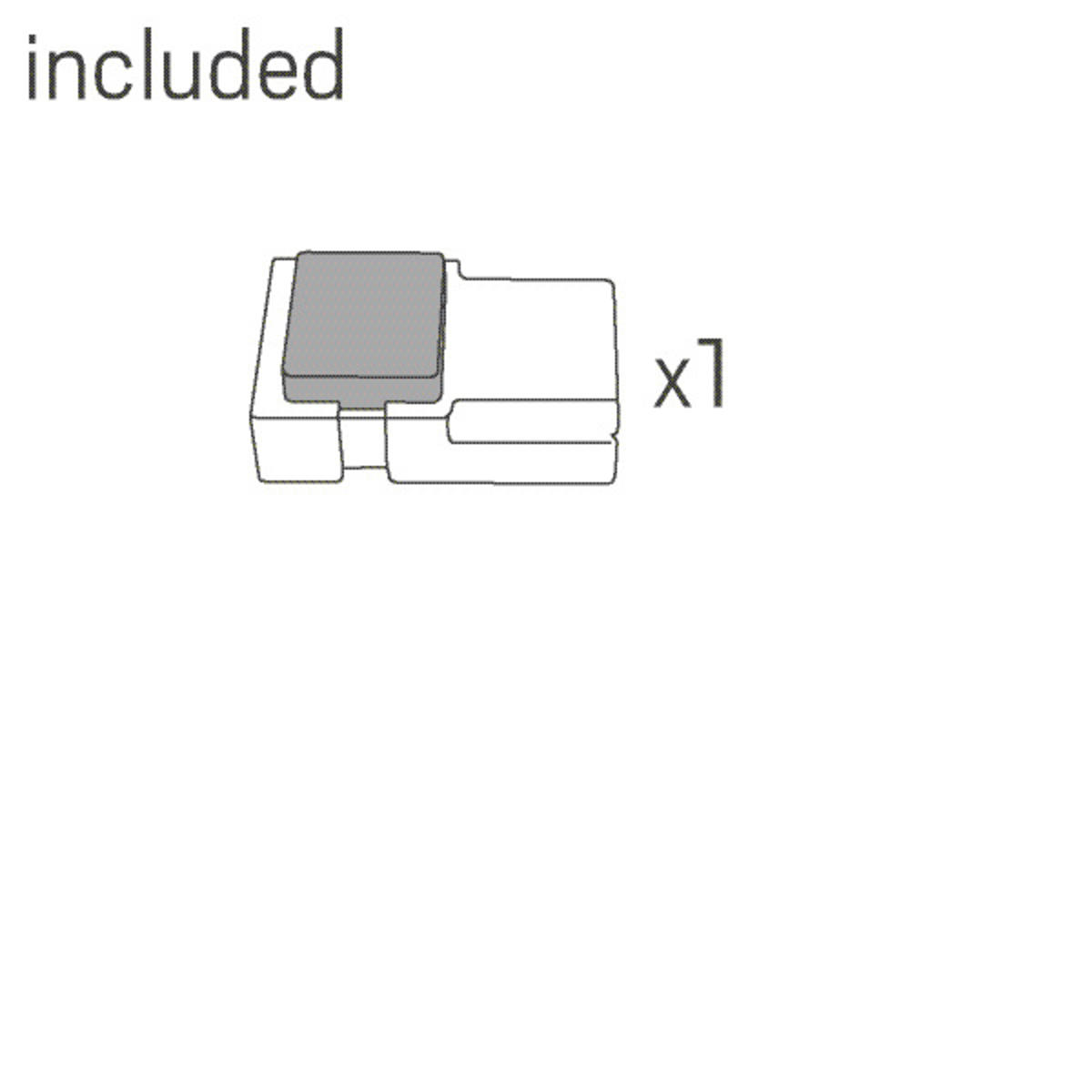

Comes with 2m connecting cable at each end, self-adhesive tape and 1pc quick connection (5 m)
Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables

Professional LEDstrip with close LED spacing to create a homogenous light with opal cover - also for low profiles. High lumen output and very good colour rendering, Ra>90. Comes as standard in rolls of five metres with 2 m connecting cable at each end, 1pc quick connection and self-adhesive tape for easy installation. Also available made to measure in optional lengths. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing.

GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
7392971138619	LEDstrip RX HD IP20 24V 2700K 5m	2700	5750
7392971138626	LEDstrip RX HD IP20 24V 2700K lpm	2700	1150
7392971138633	LEDstrip RX HD IP20 24V 4000K 5m	4000	6250
7392971138640	LEDstrip RX HD IP20 24V 4000K lpm	4000	1250

Description: GTIN 7392971138619

Item Name LEDstrip RX HD IP20 24V 2700K 5m

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 5750

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 2700

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 340

Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 840

LED Pitch (mm) 6

Life Time L80 50 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L82

LLMF @ 50 000h 0,82
Technical data: Voltage (type) DC

Voltage Interval (V) 24...24

Voltage Nominal (V) 24

Power Luminaire (W) 62,5

System Power (W) 68,75

Efficiency Luminaire (lm/W) 92

Efficiency System (lm/W) 84

Energy Efficiency Class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Voltage

Connection (type) Cable

Length Connection (cm) 200

Connection (mm2) 2x0,5

Length Connection Secondary (cm) 200

Operating Temperature -20…+45

Max. Tc (°C) 70
Color and material: Material Copper

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class III

Installation Surface mounted

Mounting Installation Self Adhesive Tape

Approval Marks CE

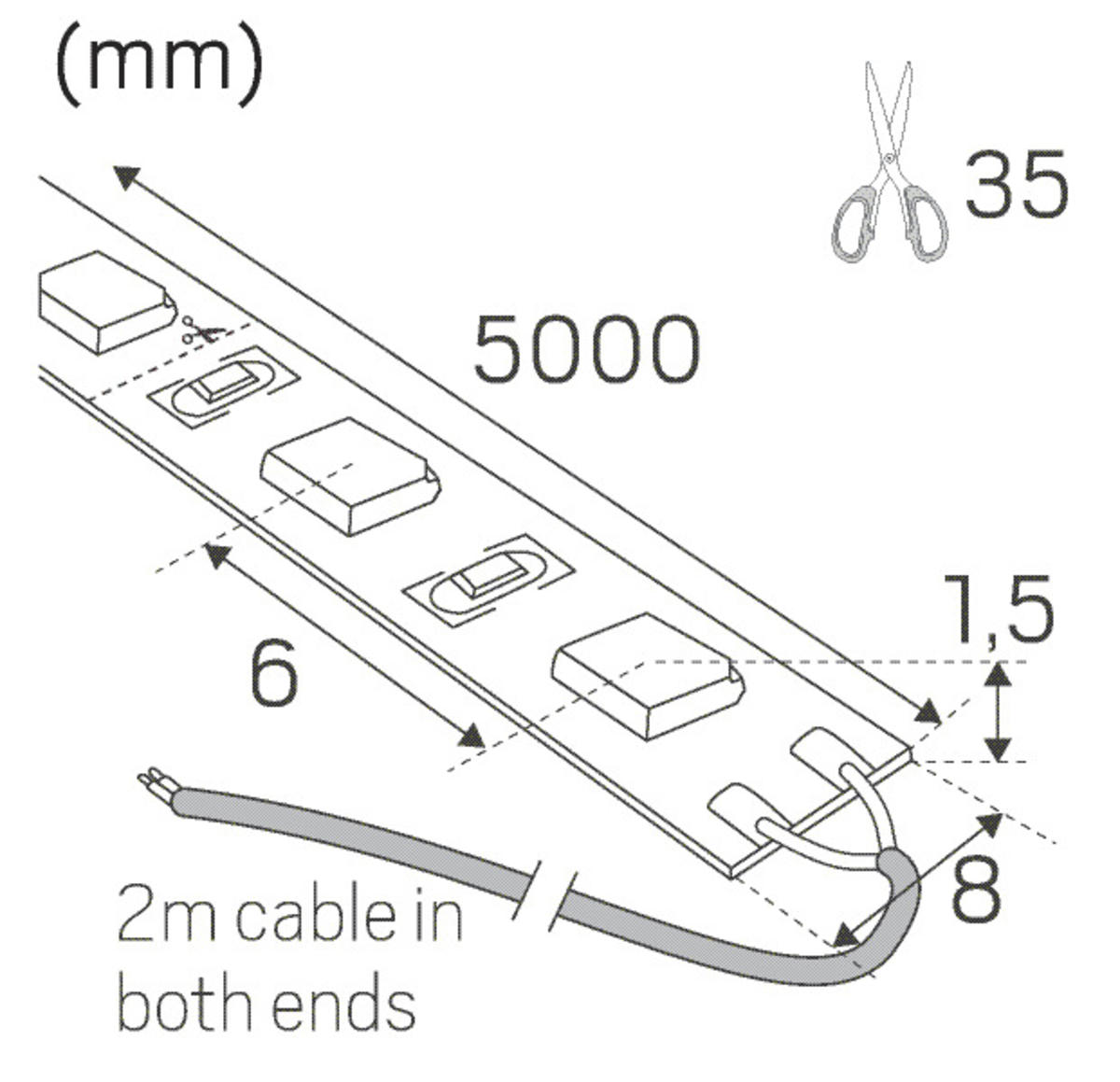

Length (mm) 5000

Width (mm) 8

Height (mm) 2

Weight (kg) 0,14
LEDstrips: Min. Bend Radius (mm) 60

Min. Length (m) 0,036

Max. Length (m) 10

Cutting Increments (mm) 35,7

LEDstrip 24V IP20
