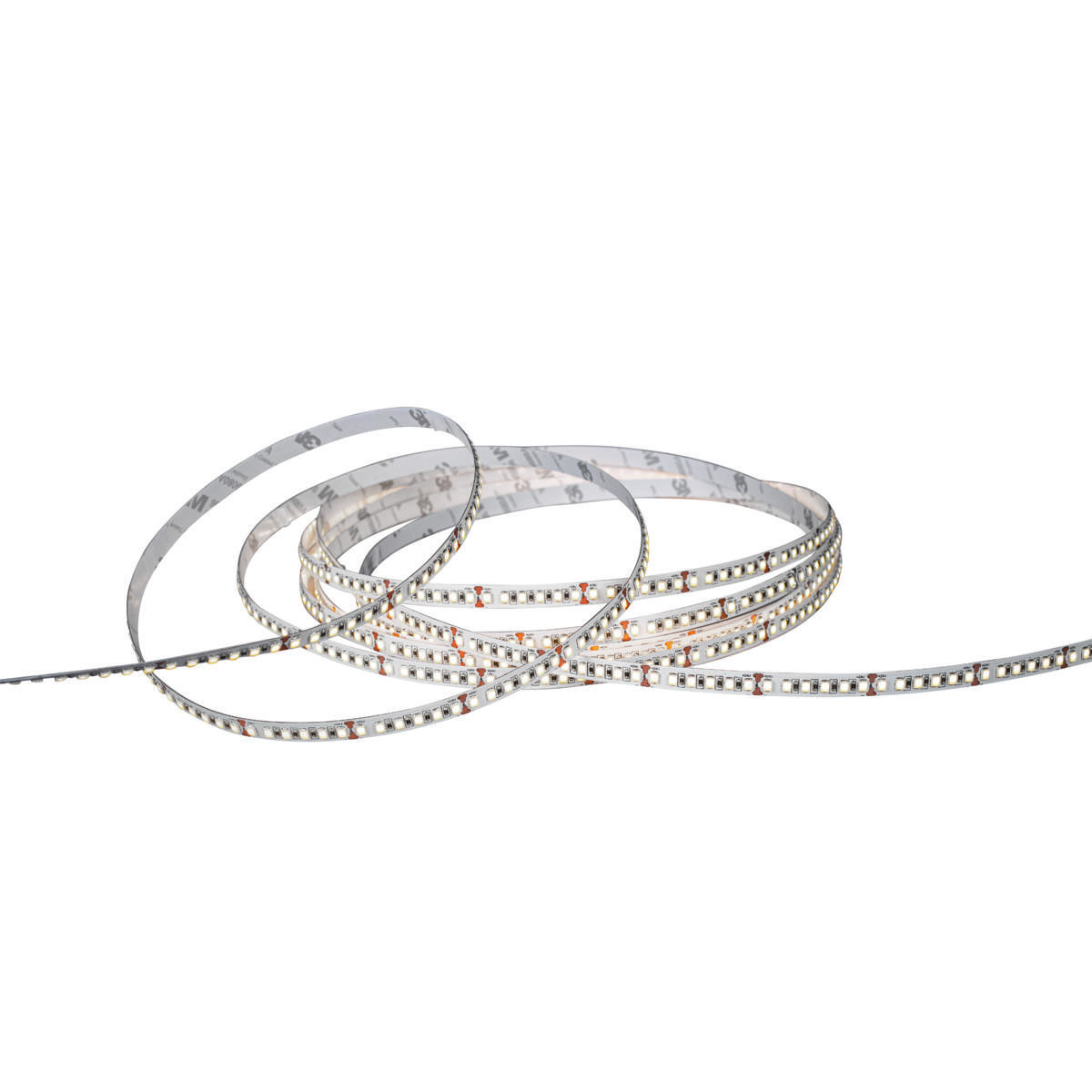

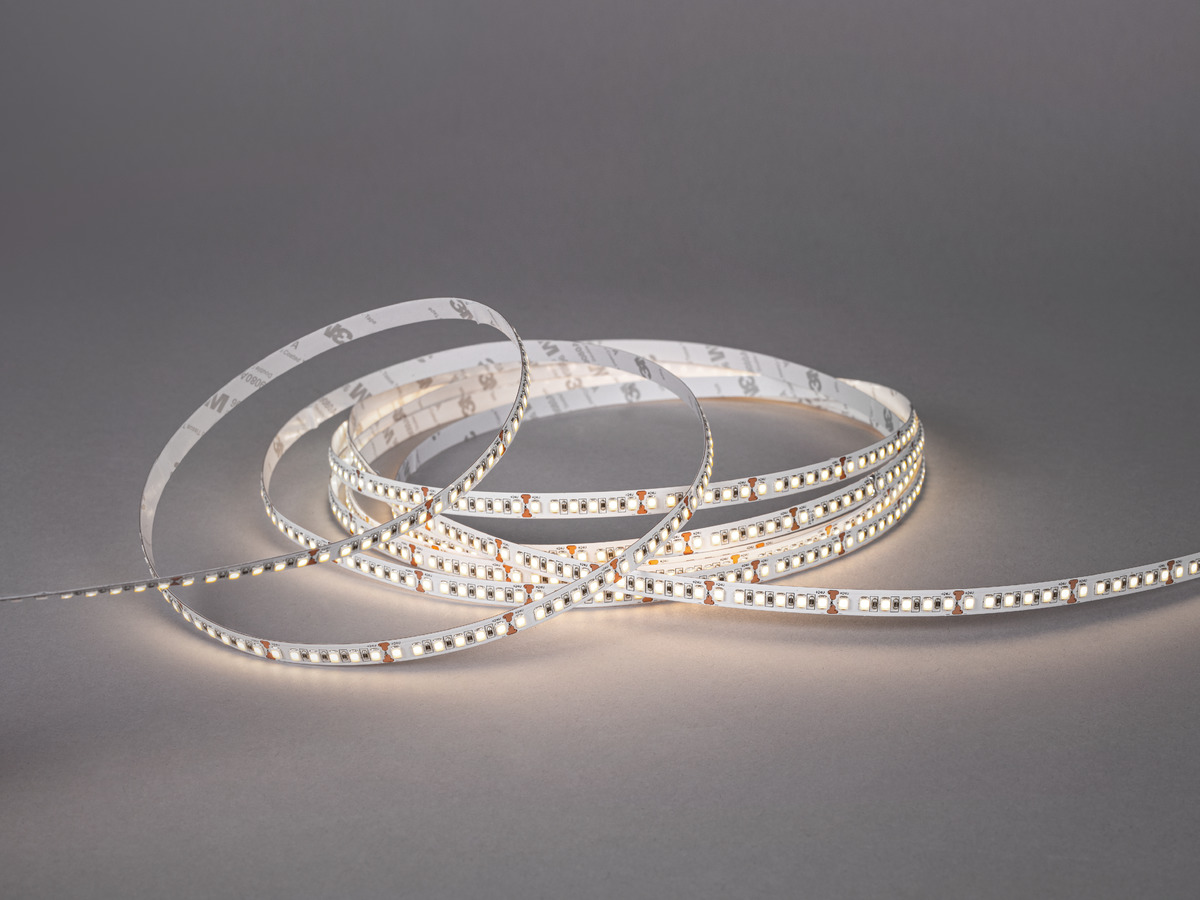

LEDstrip RX HD IP20

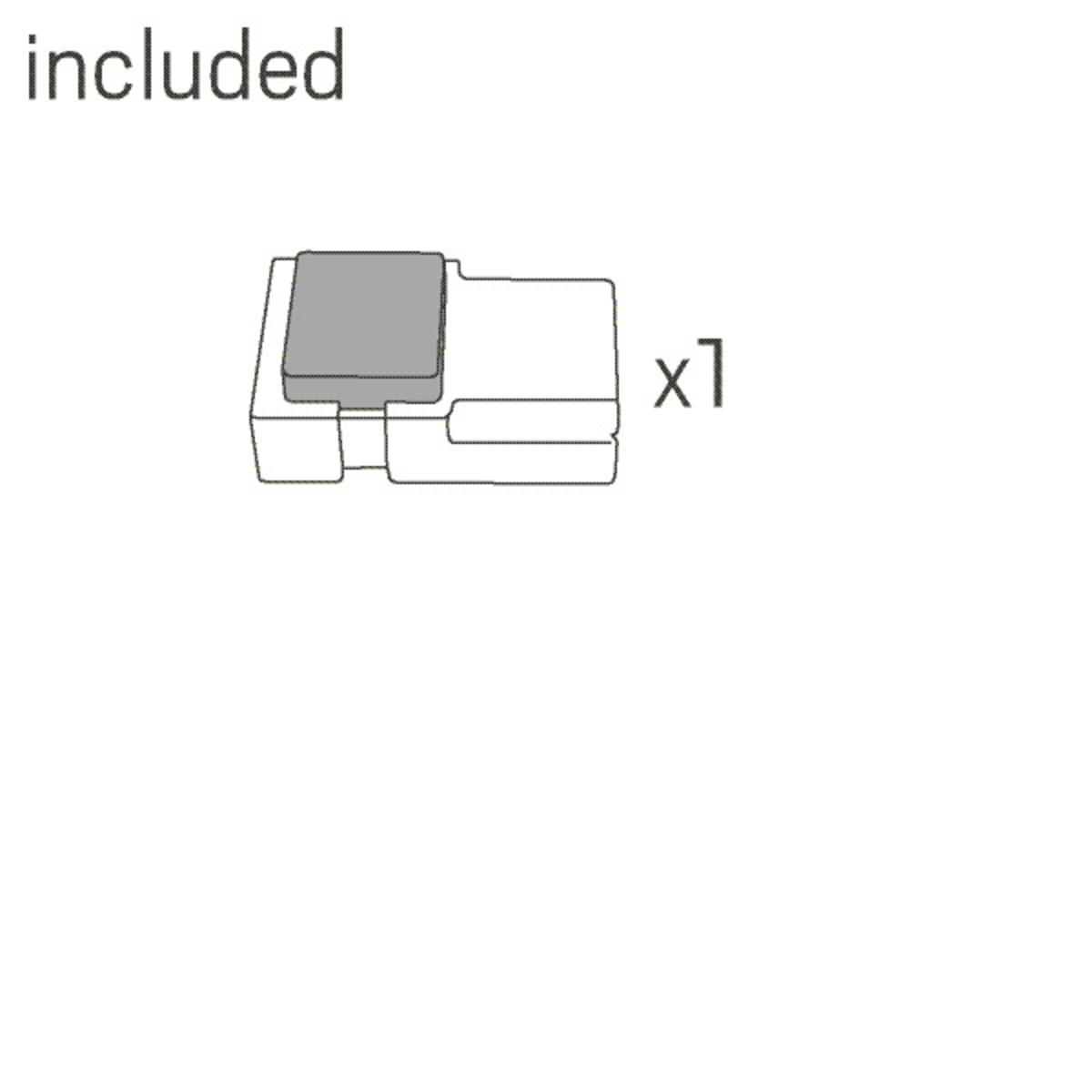

Comes with 2m connecting cable at each end, self-adhesive tape and 1pc quick connection (5 m)
Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables

Professional LEDstrip with close LED spacing to create a homogenous light with opal cover - also for low profiles. High lumen output and very good colour rendering, Ra>90. Comes as standard in rolls of five metres with 2 m connecting cable at each end, 1pc quick connection and self-adhesive tape for easy installation. Also available made to measure in optional lengths. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing.

GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
7392971138633	LEDstrip RX HD IP20 24V 4000K 5m	4000	6250
7392971138619	LEDstrip RX HD IP20 24V 2700K 5m	2700	5750
7392971138626	LEDstrip RX HD IP20 24V 2700K lpm	2700	1150
7392971127545	LEDstrip RX HD IP20 24V 3000K 5m	3000	6000
7392971127552	LEDstrip RX HD IP20 24V 3000K lpm	3000	1200
7392971138640	LEDstrip RX HD IP20 24V 4000K lpm	4000	1250

Description: GTIN 7392971138633

Item Name LEDstrip RX HD IP20 24V 4000K 5m

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 6250

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour White

Colour Temperature (K) 4000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 380

Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 840

LED Pitch (mm) 6

Life Time L80 50 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L82

LLMF @ 50 000h 0,82
Technical data: Voltage (type) DC

Voltage Interval (V) 24...24

Voltage Nominal (V) 24

Power Luminaire (W) 62,5

System Power (W) 68,75

Efficiency Luminaire (lm/W) 100

Efficiency System (lm/W) 91

Energy Efficiency Class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Voltage

Connection (type) Cable

Length Connection (cm) 200

Connection (mm2) 2x0,5

Length Connection Secondary (cm) 200

Operating Temperature -20…+45

Max. Tc (°C) 70
Color and material: Material Copper

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class III

Installation Surface mounted

Mounting Installation Self Adhesive Tape

Approval Marks CE

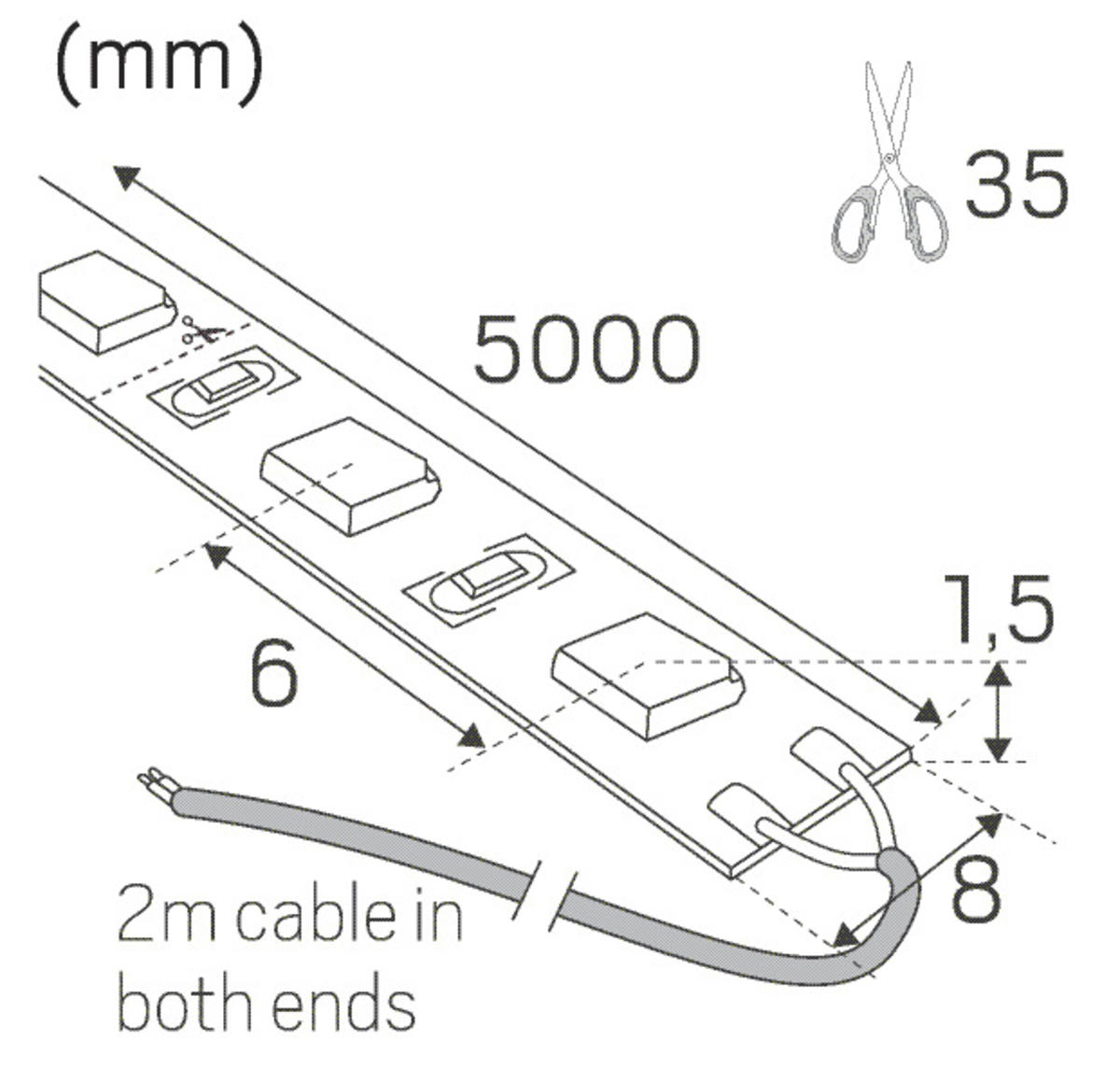

Length (mm) 5000

Width (mm) 8

Height (mm) 2

Weight (kg) 0,14
LEDstrips: Min. Bend Radius (mm) 60

Min. Length (m) 0,036

Max. Length (m) 10

Cutting Increments (mm) 35,7

LEDstrip 24V IP20

LEDstrip 24V IP20 comes with three lumen outputs, Low, Mid and High, to make it easier to find the right light for the right place. Want a subtle and relaxed atmosphere? Choose Low. Need more powerful lighting to bring out specific areas? Choose High. Perfect when you want to adapt the light to create character whatever the environment. Fits perfectly in our range of aluminium profiles. Very good colour rendering, RA > 90. Comes as standard in rolls of five metres with two metre connecting cable at each end, a quick connection and self-adhesive tape for easy installation. Five metre packs contain products to enable you to create three different lengths to suit your needs. LEDstrip 24V is also available made to measure in optional lengths. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing.

LEDstrip 24V IP20

Basic version of our 24V LEDstrip, with120 LED/m there is lots of light and good efficiency. The smaller gap between diodes gives a homogeneous light with opal cover also in lower profiles. Very good colour rendering, Ra> 90. Comes in 5m lengths with self-adhesive tape, 2m connecting cable at each end and 1one quick connection. Also available made to measure in optional lengths with 50mm cut-off intervals and maximum length 10m. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing.

LEDstrip 24V Line IP20

LEDstrip with technology that conceals the LED Chip and electronics under an homogenous phosphorous/silicone layer. Short spacing between the LEDs creates an even illuminated line without profile or cover. COB technology with high lumen output and very good efficiency. Cutting increments of 31,25 mm and seamless joints make it simple to adapt lengths. Comes as standard in rolls of five metres with 2 m connecting cable at each end, 1pc quick connection and self-adhesive tape for easy installation. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing. Maximum length 5m.

LEDstrip 24V RX HDI IP20

LEDstrip with short spacing between LEDs giving high lumen output with very good light quality and colour rendering, Ra>90. Perfect for a homogenous light with opal cover- also with lower profiles. Comes as standard in rolls of five metres with 2 m connecting cable at each end, 1pc quick connection and self-adhesive tape for easy installation. Also available made to measure in optional lengths with 5cm cut-off intervals. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing.

LEDstrip 24V RX HD IP20
